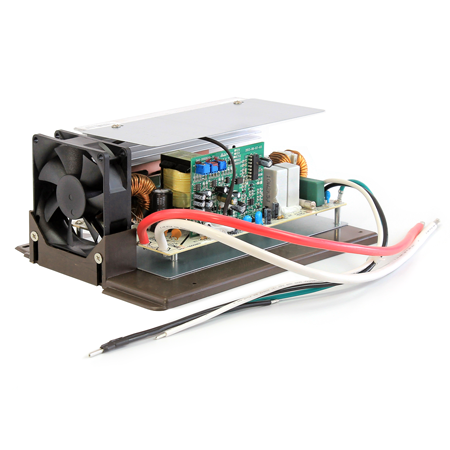

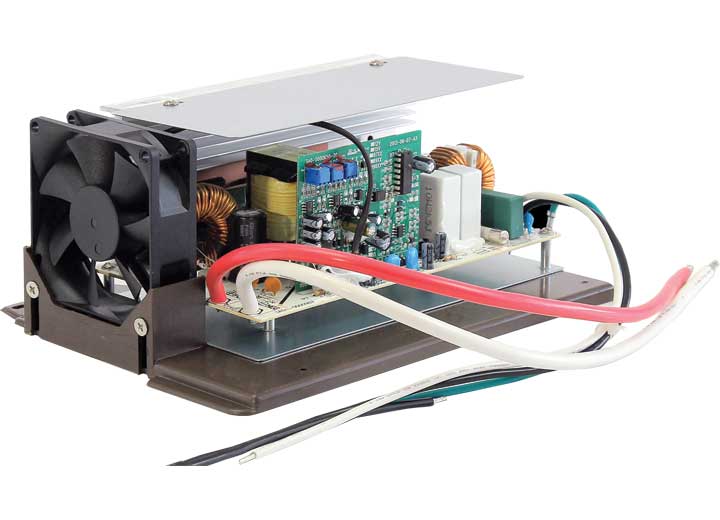

WF-8900-AD-MBA Main Board Assembly series is a quick, easy replacement part for all power centers that now includes an industry first, Patent Pending Auto-Detect technology. This new microprocessor driven technology will recognize lithium ion and lead acid battery chemistries and automatically adjust the charging profile to match the battery type. Auto-Detect Enables RV owners to optimize their batteries without needing to change out an entire converter or operate a manual switch to properly charge batteries. It installs easily with only two screws, three AC wires, and two DC wires.

Attributes

• Converts: 105-130 Volt AC To 13.2-14.4 Volt DC
• Continuous Output Power: 750 Watt
• Peak Output Power: 950 Watt
• Ampere Rating: 55 Amp
• Number Of Outlets: 1
• Efficiency: 80 Percent
• Length: 9-1/2 Inch
• Width: 7-1/16 Inch
• Height: 3-7/8 Inch
• Remote On/Off Capable: No
• With Short Circuit: Yes
• With Reverse Battery Protection: Yes
• With Thermal Protection: Yes
• With Built-In Charger: Yes
• With Fuse: No

Features & Benefits

• Protection From Short Circuit
• Designed For Durability
• Made In USA
• Easy To Install
• Limited 2 Year Warranty
